2D-QuickScan WL5

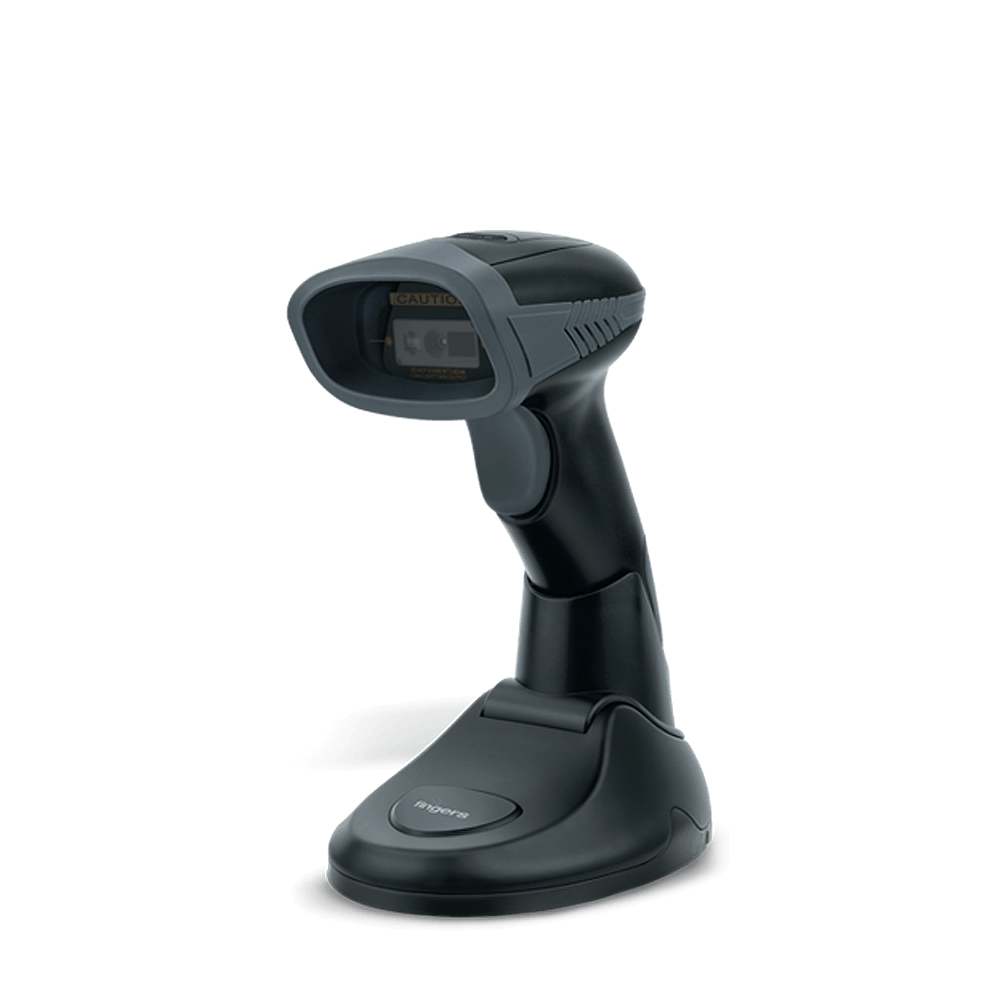

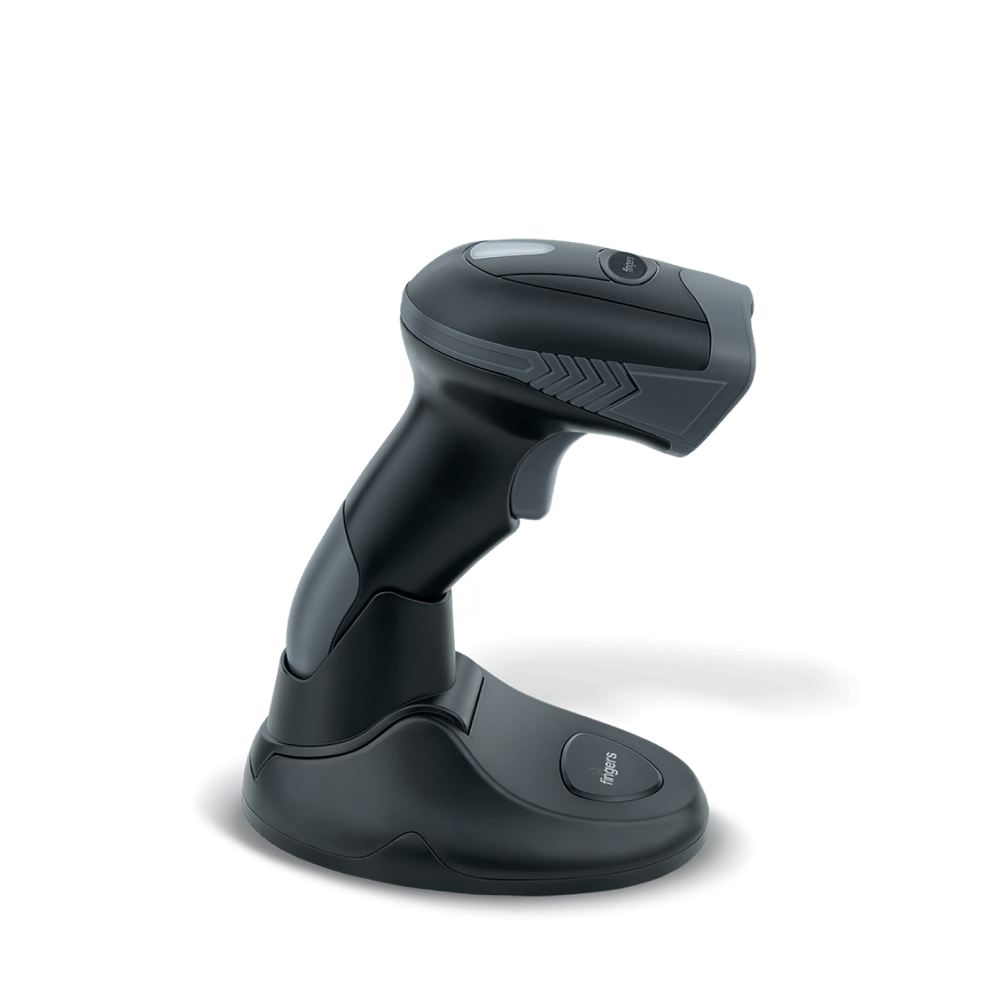

Picture of 2D-QuickScan WL5
Picture of 2D-QuickScan WL5 Picture of 2D-QuickScan WL5
1 Year Warranty
Free shipping
MRP: ₹ 7,999.00 incl GST
₹ 5,299.00 incl GST
whatsapp

Powered by latest Quick Scan & CMOS Image Technology, FINGERS 2D-QuickScan WL5 Barcode Reader delivers superior performance that scans 1D/2D barcodes effortlessly with whopping 200 scans per second!
Reliability is its middle name and can be used as a Wired or Wirelessly (through USB Receiver or Bluetooth) depending on the need of the hour. Ergonomically designed with handheld form factor, it is engineered for superior comfort and highly accurate scanning, thereby eliminating wasted seconds and improving users’ efficiency.
From retail to POS to warehouse to distribution centres, these barcode scanners comes in handy and meet wide range of scanning needs in various environments and applications.

Attribute nameAttribute value
Product Specifications
Certifications1.5 m drops
InterfaceUSB Receiver
In-built Memory4 MB
IndicatorBeeper, LED
Operation ModeSwitch Press (Trigger)
Barcode Type Support

1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar,Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5

2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code

Effective Frequency Range2402 MHz ~ 2480 MHz
Effective Range30 - 50 meters (Open Space)
Light Source617 nm LED Aimer, White LED
Scan Rate200 scans/sec
Resolution

1D ≥ 5 mil
2D ≥ 10 mil

Print Contrast Ratio20%
Depth of Field

EAN13 50-200 mm (13mil)
QR 25-240 mm (20 mil)
PDF417 30 - 130 mm (6.67 mil)

Input VoltageDC 5 V ± 5%
Current

Working Current- 280 mA

Standby Current- 0 mA

Sleep Mode26 mA
Battery

Battery Type- 26 mA

Battery Capacity- 1400 mAh

Charging Type-type-C cable

Charging Time- About 5 hours

Shock Resistance1.5 m drops
Dimensions & Weight
Dimensions15.4 (H) x 8.5 (W) x 6.2 (L) cm
PC Cases Specifications
Weight201 grams (without receiver)
Environmental
Temperature0°C – 40°C
Specifications
Country of OriginIndia
